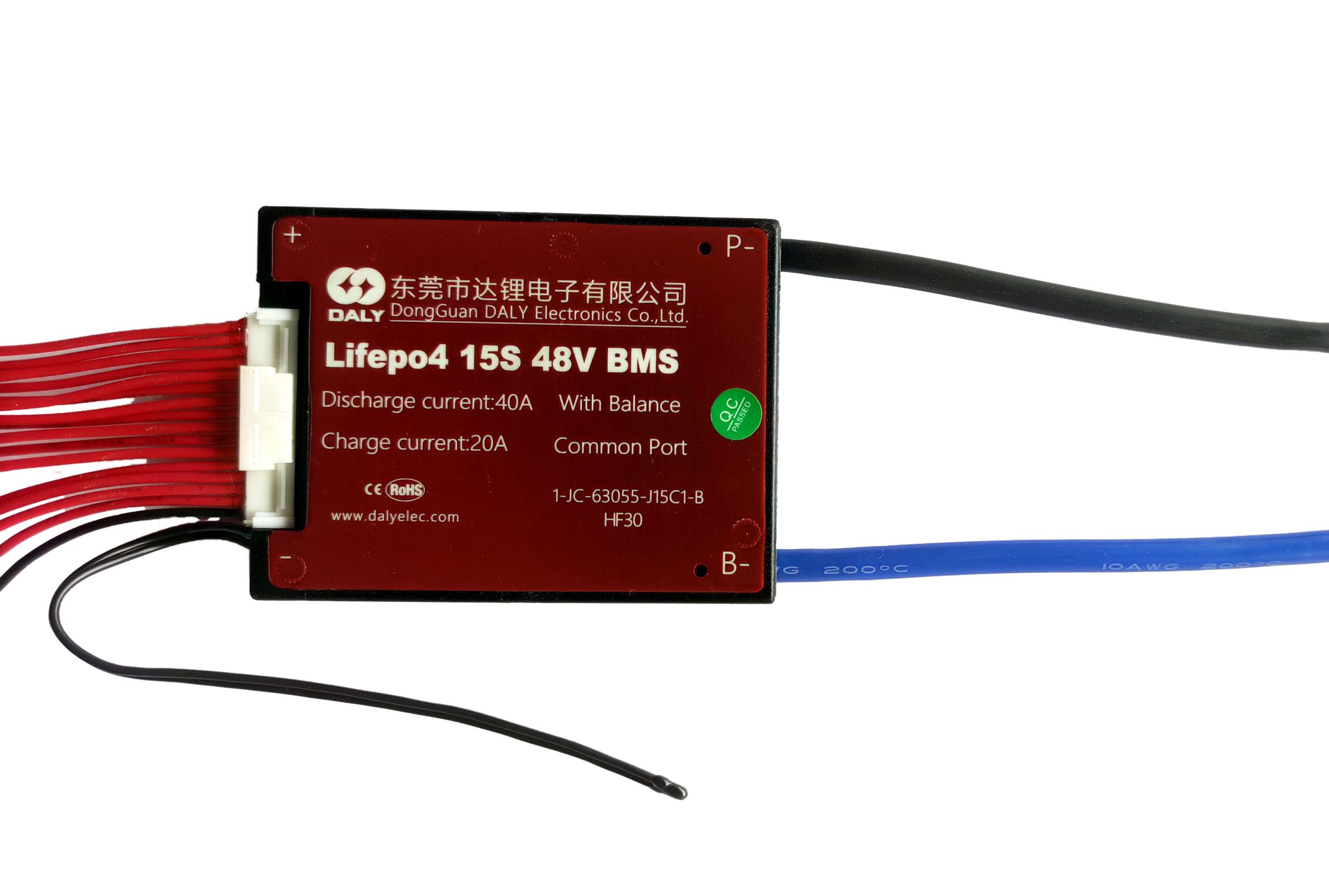

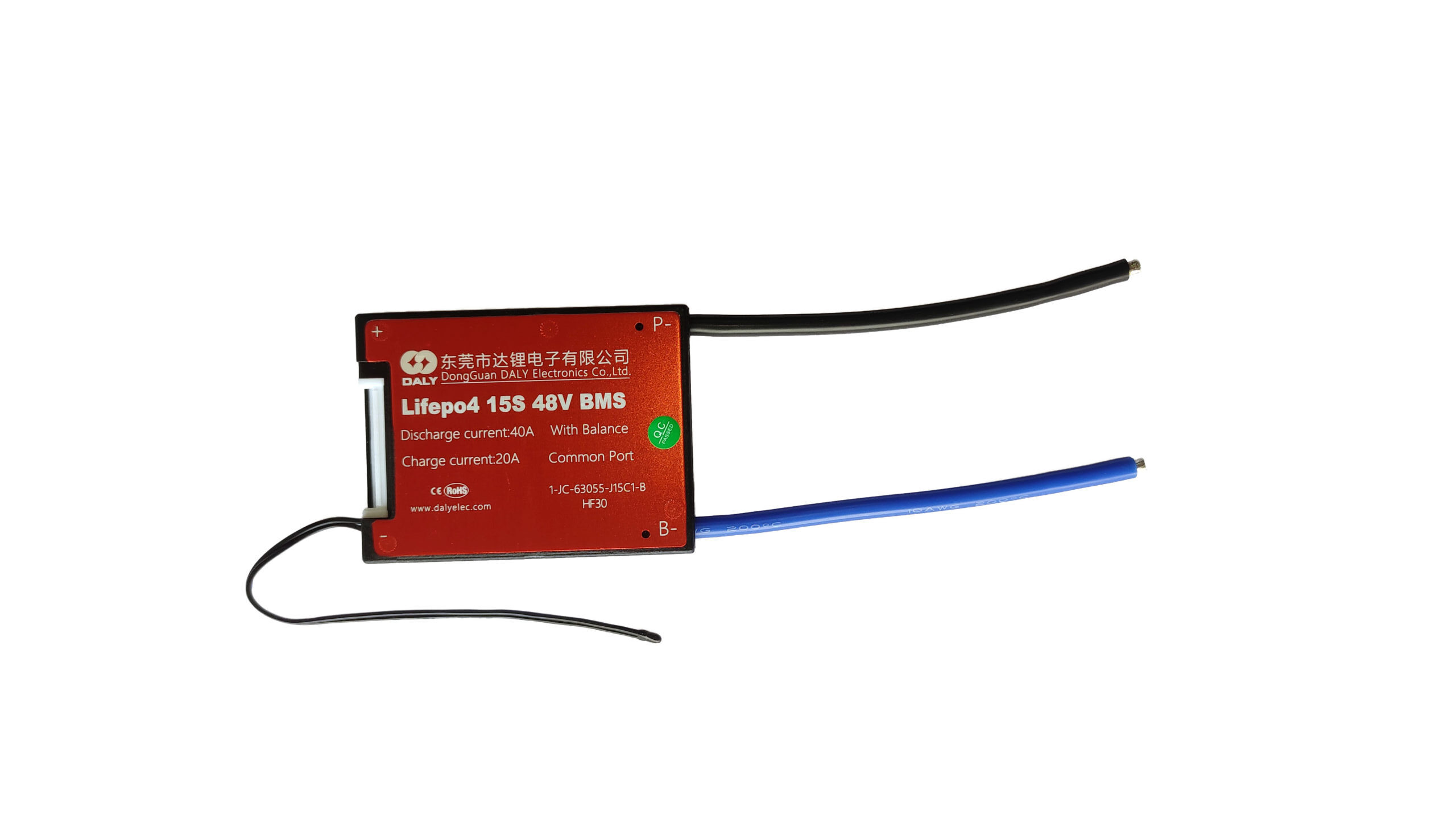

15S40A 48V Battery Management System(BMS) for Lithium Iron Phosphate Battery
₹1,588.98
Product Descriptions
15S40A 48V LFP Battery Management system (BMS) is designed specifically for lithium-iron Phosphate batteries pack of 48V. It can measure, collect, process and use the information data of the battery in real time and ensure the safety and stability of the battery.
15S40A 48V LFP BMS has following salient features
- The protection of batteries from over-charge, over-discharge, over-current, short-circuit
- Short term water proof to protect battery pack from extreme weather and tough dynamic conditions.
- Common Port design – 2 wires only, Charge and discharge port share the same port.
- BMS comes with balancing connection wire connector to reduce the wire complexity and number of solders.
- Dust proof, shockproof and anti-squeezing, protects circuit from external damages.
- BMS has passive balancing function which gives long life to the batteries.
- The appearance is sealed by injection moulding process to improve moisture-proof and oxidation-proof circuit components and prolong the service life of the products and batteries.
Description
Battery Management System for 48V 15S40A battery pack configuration of Lithium Iron Phosphate cells. Over Charge Protection: Yes Over Discharge Voltage: Yes Short Circuit Protection: Yes Cell balancing Yes Over Current Protection Yes Specification:- 1 Discharge Continuous Discharging Current 40A Over discharge Current Detect Voltage 100±20A 2 Charge Charging Voltage 54.75V Charging Current 20A 3 Over charge protection Over Charge Protection Voltage 3.75±0.05V Release delay of Single Over Charge Protection 1S Over Charge Release Voltage 3.55±0.05V 4 Cell balancing Cell balancing Detection Voltage 3.5V Cell balancing Current 30±5mA 5 Over discharge protection Over Discharge Detect Voltage 2.2±0.05V Over discharge Detect Delay Time 1S Over Discharger Release Voltage 2.7±0.05V 6 Charge/Discharge Overflow protection Discharge Current Level 2 Protection Current 100±20A Discharge Current Level 2 Protection delay 1S Over Current Protection Condition Disconnect the load 7 Short Circuit Protection Protection Condition Short circuit of External Load Detection Delay Time 250 uS Protection Release Condition Disconnect the load 8 Temperature Range -20ºC ~ 60ºC 9 Internal Resistance ≤20mΩ 10 Dimension L80*W61*T12mm
Additional information
| Weight | 0.3 kg |
|---|
