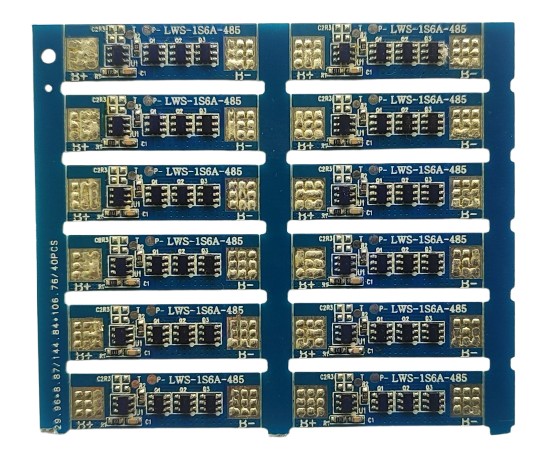

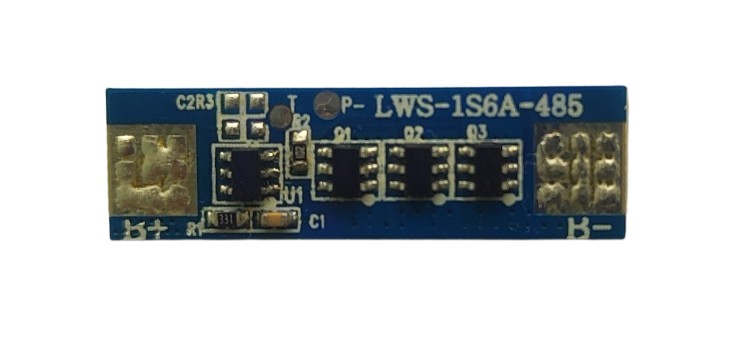

1S6A PCM Lithium Iron Phospate (LFP)

1 Voltage
Charging voltage DC:   3.6V CC/CV
Balance voltage for single cell
2 Current
Balance current for single cell
Current consumption     ≤ 20µA
Maximal continuous charging current   6A
Maximal continuous Discharging current   6A
3 Over charge Protection
Over charge detection voltage for single cell    3.65V±0.025V
Over charge detection delay time    0.5S-1.5S
Over charge release voltage for single cell      3.45V±0.05V
4 Over discharge protection
Over discharge detection voltage for single cell    2.50V±0.08V
Over discharge detection delay time      10mS-150mS
Over discharge release voltage for single cell     3.00±0.10V
5 Over current protection
Over current detection voltage      200±25mv
Over current detection current     12±2A
Detection delay time      5ms-20ms
Release condition Cut load
6 Short protection
Detection condition Exterior short circuit
Detection delay time      200-500us
Release condition Cut load
7 Resistance Protection circuitry(MOSFET)    ≤50mΩ
8 Temperature
Operating Temperature Range     -20~+65°C
Storage Temperature Range     -20~+85°C

9 Dimension

L30*W9*T2.3 mm
