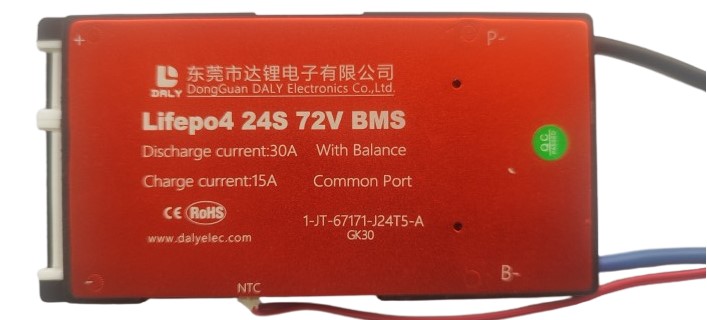

24S30A 72V Lithium Iron Phosphate Battery Management System(BMS)
24S30A 72V Lithium Iron Phosphate Battery Management System(BMS)
24S30A 72V Lithium Iron Phosphate Battery Management System(BMS)

24S30A 72V Lithium Iron Phosphate Battery Management System(BMS)

Original price was: ₹3,144.07.Current price is: ₹2,415.25.

Product description

Battery Management system (BMS)  24S30A 72V for Lithium iron phosphate battery pack for 24 series cells of nominal voltage 3.2v.  It has following protections

Over Charge Protection: Yes

Over Discharge Voltage: Yes

Short Circuit Protection: Yes

Cell balancing Yes

Over Current Protection Yes

The salient feature of 24S30A 72V LFP BMS are:-

  • Short term waterproof to protect battery pack from extreme weather and tough dynamic conditions.
  • Common Port design – 2 wires only, Charge and discharge port share the same port.

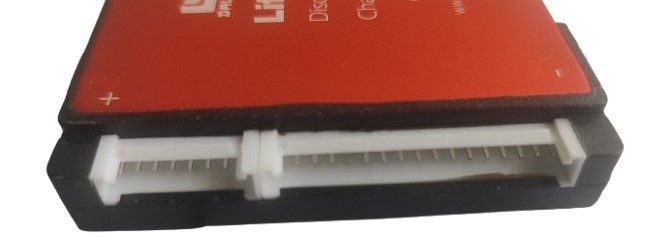

  • BMS comes with balancing connection wire connector to reduce the wire complexity and number of solders.
  • Dust proof, shockproof and anti-squeezing, protects circuit from external damages.
  • BMS has passive balancing function which gives long life to the batteries.
  • The appearance is sealed by injection moulding process to improve moisture-proof and oxidation-proof circuit components and prolong the service life of the products and batteries.

One pack of BMS contains

1) Open BMS circuit board,

2) Wire with snap in connector for connection between cells and BMS.

The BMS 24S 30A comes with equalization function which facilitate to keep the cells at same level and ensure prolong life. The components used in the BMS is Highly integrated IC,  low resistance MOS, and high current equalizer.

SKU: 2011524030 Categories: ,

Description

Specification:-

1 Discharge

Continuous Discharging Current                               30A

Over discharge Current Detect Voltage                    100±20A

2 Charge

Charging Voltage                                                         87.6V

Charging Current                                                           15A

Over charge protection

Over Charge Protection Voltage                                 3.65±0.05V

Release delay of Single Over Charge Protection      1S

Over Charge Release Voltage                                      3.55±0.05V

3 Cell balancing

Cell balancing Detection Voltage                                3.405V

Cell balancing Current                                                  30±5mA

4 Over discharge protection

Over Discharge Detect Voltage                                   2.35±0.05V

Over discharge Detect Delay Time                             1S

Over Discharger Release Voltage                               2.55±0.05V

5 Charge/Discharge Overflow protection

Discharge Current Level 2 Protection Current         100±20A

Discharge Current Level 2 Protection delay             1S

Over Current Protection Condition                            Disconnect the load

6 Short Circuit Protection

Protection Condition                                                    Short circuit of External Load

Detection Delay Time                                                   250 uS

Protection Release Condition                                     Disconnect the load

7 Temperature Range                                                   -20ºC ~ 60ºC

8 Internal Resistance                                                    ≤20mΩ

9 Dimension L128*W65*T12mm

Additional information

Weight 0.4 kg
