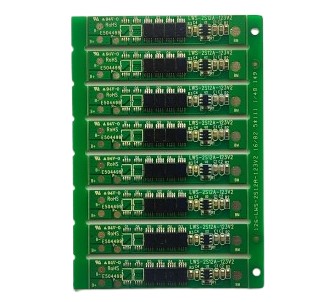

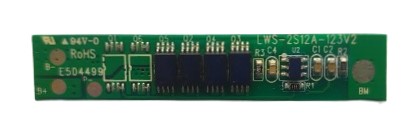

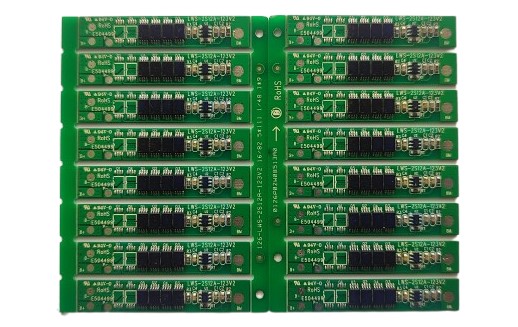

2S10A PCM Lithium Iron Phospate (LFP)

1 Voltage
Charging voltage DC:   7.2V CC/CV
Balance voltage for single cell
2 Current
Balance current for single cell
Current consumption Max:   20µA
Maximal continuous charging current   10A
Maximal continuous Discharging current    10A
3 Over charge Protection
Over charge detection voltage for single cell    3.90V ± 0.025V
Over charge detection delay time   0.5 – 1.8S
Over charge release voltage for single cell    3.80 ± 0.05V
4 Over discharge protection
Over discharge detection voltage for single cell    2.0V ± 0.08V
Over discharge detection delay time    50 – 170mS
Over discharge release voltage for single cell    3.0 ± 0.1V
5 Over current protection
Over current detection voltage    100 ± 30mv
Over current detection current   30 ± 3A
Detection delay time    5 – 15ms
Release condition cut load
6 Short protection
Detection condition Exterior short circuit
Detection delay time   200 – 500us
Release condition cut load
7 Resistance Protection circuitry(MOSFET)   ≤ 60mΩ
8 Temperature
Operating Temperature Range   -20 ~ +60°C
Storage Temperature Range   -20 ~ +65°C

9 Dimension

L48*W9*T2.5mm
