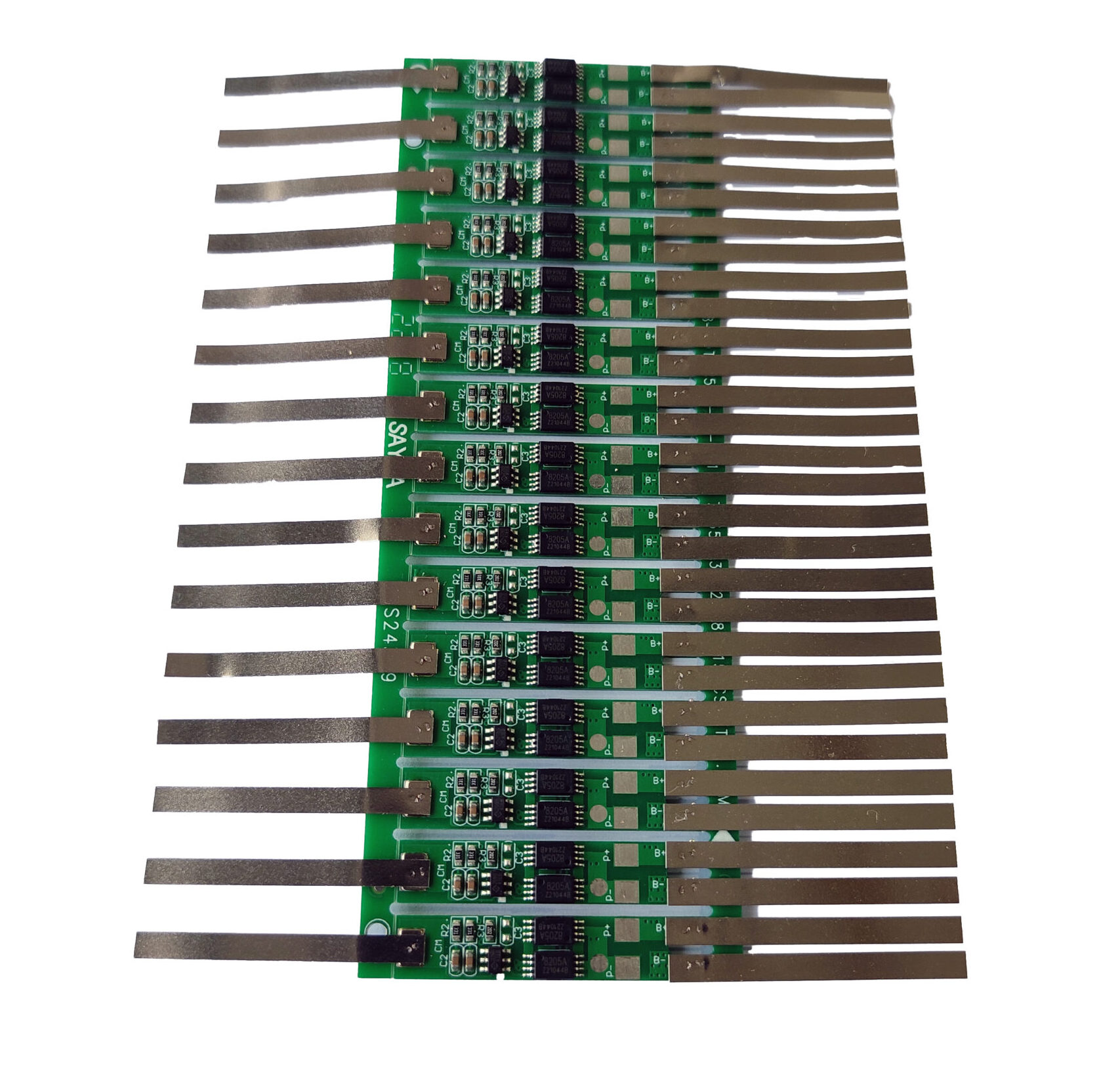

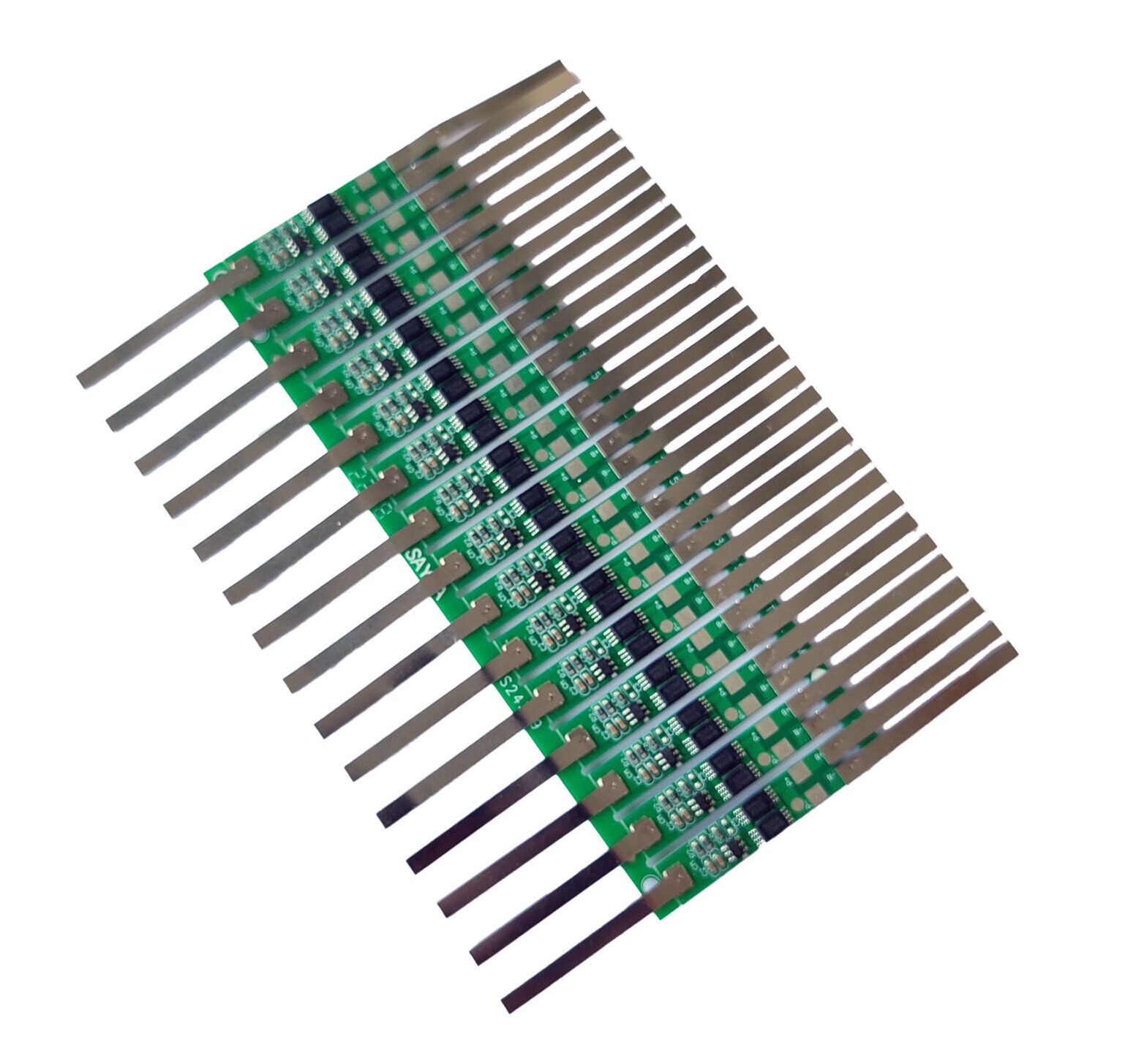

2S3A Lithium Ion BMS(Pack of 5 Nos.)
₹152.54
Lithium Battery management system (BMS) or protection control module PCM for 2S3A lithium-ion 3.7v battery. It can be used with 18650 cells, 21700 cells and Lithium polymer cells of different size.
The 2S3A Li-ion BMS has following protections
- Over charge protection
- Over discharge protection,
- Over current protection,
- Short circuit.
Refer PCM 2S3A product specifications for more details.
The BMS 2S 3A is must to protect the Lithium cells from extreme load conditions and ensure prolong life. The components used in the BMS are
1) Highly integrated IC,
2) low resistance MOS.
3) Additional Nickel Strip for ease of assembly with cells
Description

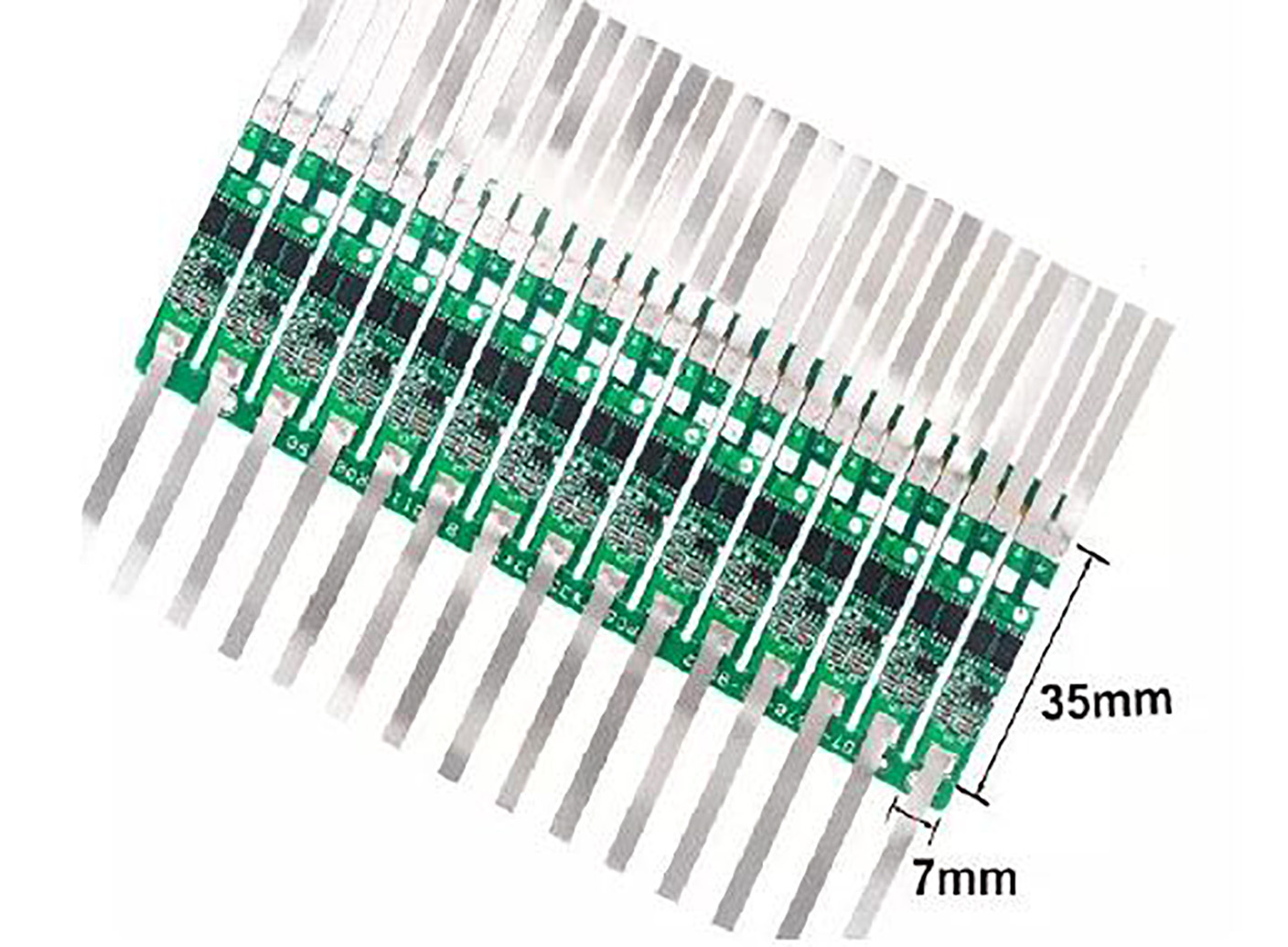

1 Voltage Charging voltage DC: 8.4V CC/CV Balance voltage for single cell Input Voltage - 0.3V~+10V 2 Current Balance current for single cell Current consumption Max: 16.00µA Maximal continuous charging current 3A Maximal continuous Discharging current 3A 3 Over charge Protection Over charge detection voltage for single cell 4.28V ± 0.05V Over charge detection delay time 0.8 ~ 1.2S Over charge release voltage for single cell 4.08 ± 0.1V 4 Over discharge protection Over discharge detection voltage for single cell 2.8V ± 0.1V Over discharge detection delay time 80 ~160ms Over discharge release voltage for single cell 3.0 ± 0.1V 5 Over current protection Over current detection current 7~15A Detection delay time 7 - 20ms Release condition cut load 6 Short protection Detection condition Exterior short circuit Detection delay time 100-350us Release condition cut load 7 Resistance Protection ≤ 30mΩ 8 Temperature Operating Temperature Range -20 ~ +60°C Storage Temperature Range -20 ~ +65°C 9 Dimension L35*W7*T2.2mm Max
Additional information
| Weight | 0.2 kg |
|---|
