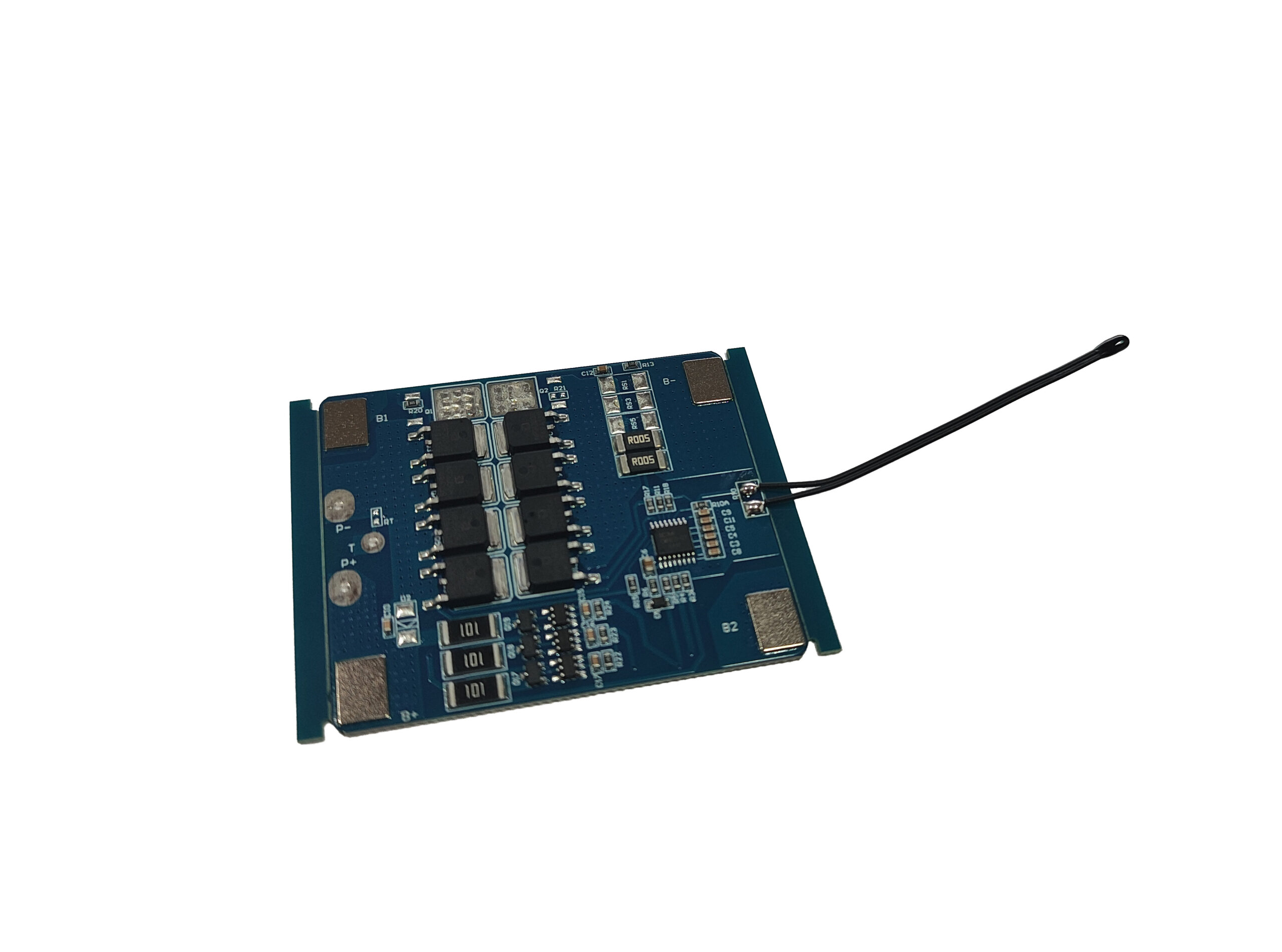

3S20A 11.1V Lithium Ion Battery Management System (BMS)
₹186.44
Product description:
Battery management system (BMS) 3S20A for lithium-ion 11.1v battery packs. It can be used with 18650 cells and Lithium polymer of different size.
The 3S20A Li ion BMS has protection for the battery over charge and over discharge, over current, short circuit, over-temperature. Refer product specification for more details.
The BMS 3S20A comes with equalization function which facilitate to keep the cells at same level and ensure prolong life. The components used in the BMS is
1) Highly integrated IC,
2) low resistance MOS, and
3) high current equalizer.
Description
1 Voltage Input voltage DC: -0.3~+13V 2 Current Balance current for single cell Current consumption Max 60 µA Maximal continuous charging current 20A Maximal continuous Discharging current 20A 3 Over charge Protection Over charge detection voltage for single cell 4.25V ± 0.05V Over charge detection delay time 0.8S - 1.6S Over charge release voltage for single cell 4.15V ± 0.1V 4 Over discharge protection Over discharge detection voltage for single cell 2.7V ± 0.1V Over discharge detection delay time 500mS - 1500mS Over discharge release voltage for single cell 3.00V ± 0.1V 5 Over current protection Over discharge current 35 ~ 40A Detection delay time 500ms ~1500ms 6 Short protection Detection delay time 100~ 350us Release condition Cut load 7 IR Resistance of PCM ≤ 30mΩ 8 Temperature Operating Temperature Range -20 ~+60°C Discharge Temperature Protection 65 ~+75°C 9 Dimension L60*W50*T2.5mm Max
Additional information
| Weight | 0.15 kg |
|---|
