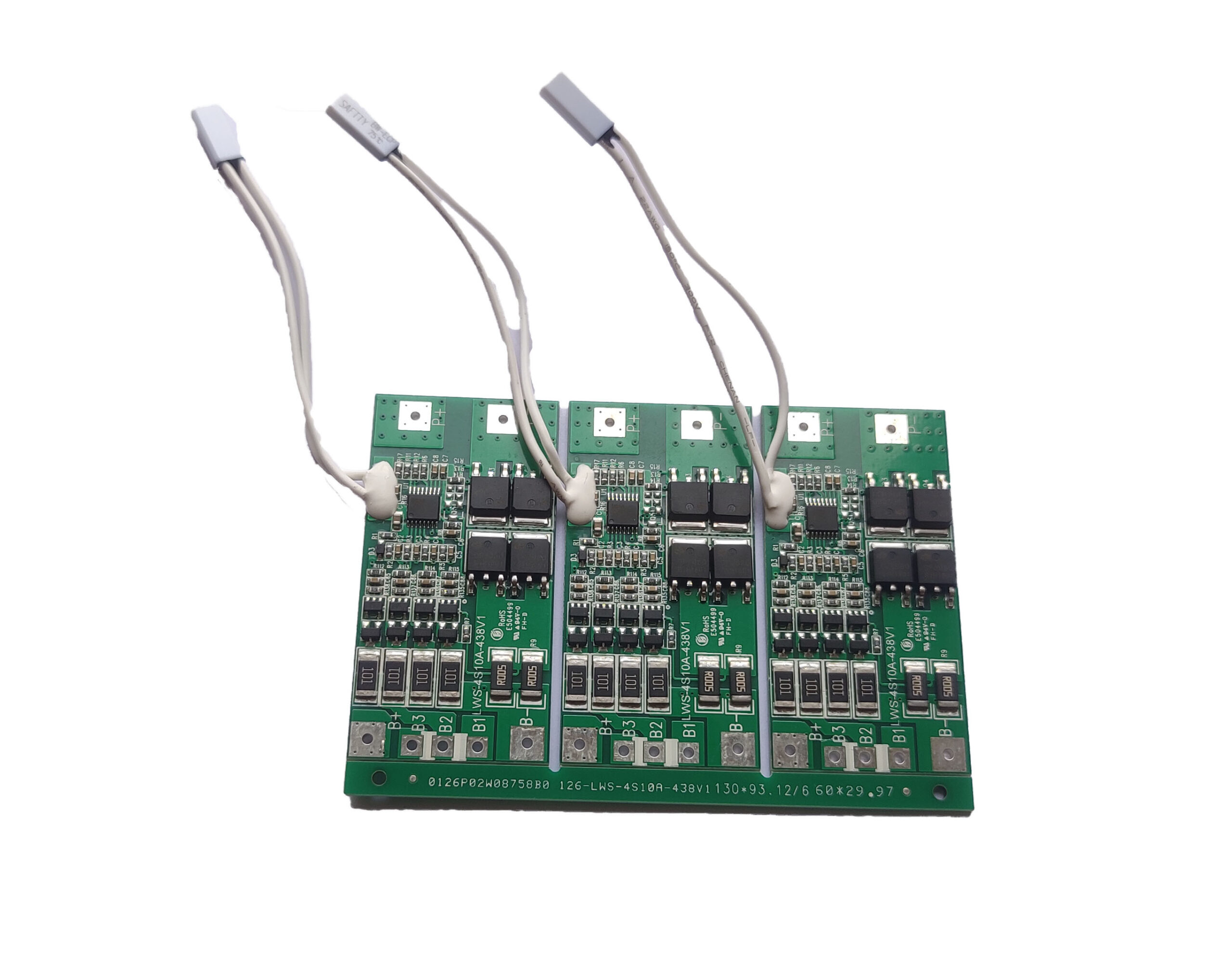

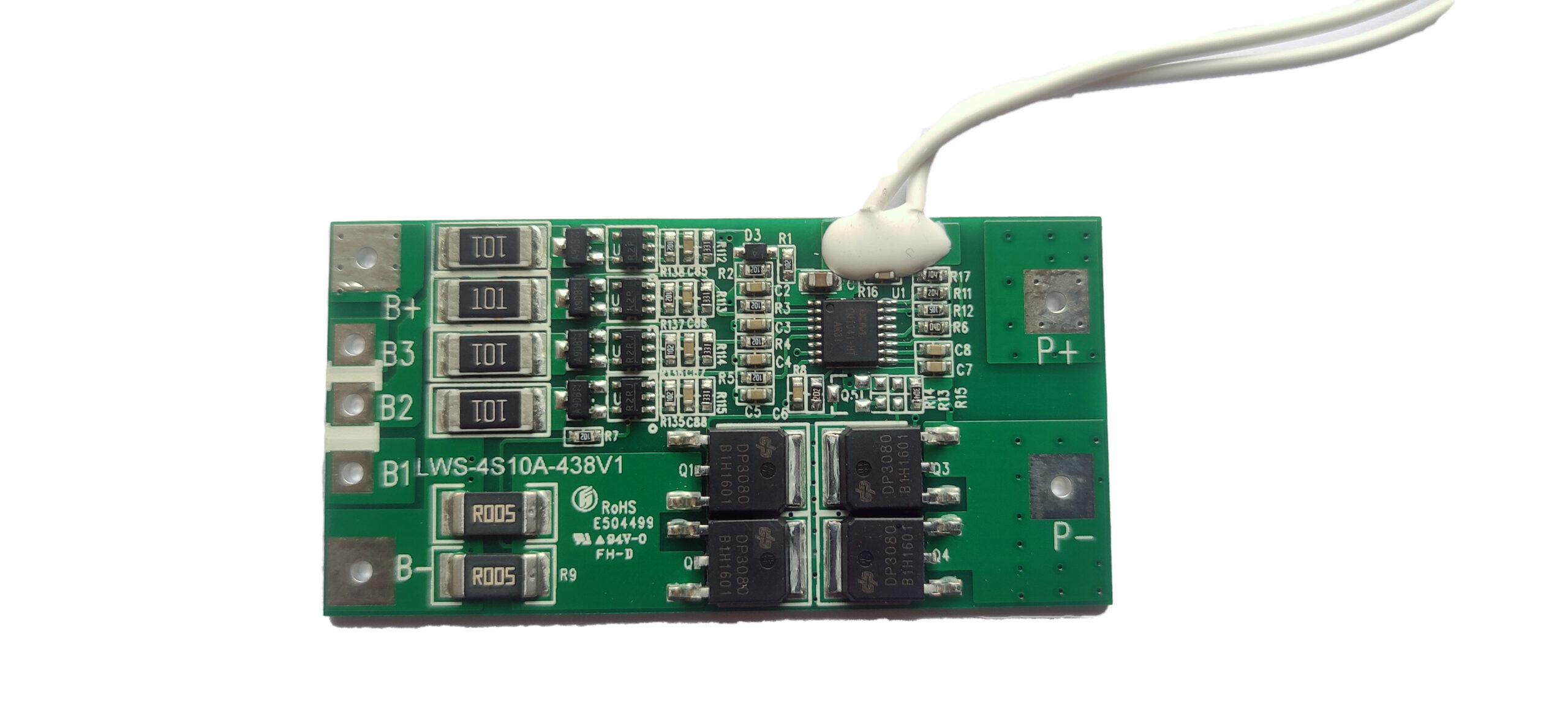

4S10A Battery Management System (BMS) for Lithium Iron Phosphate Battery (LFP)

1 Voltage
Charging voltage DC:   14.4V CC/CV
Balance voltage for single cell
2 Current
Balance current for single cell
Current consumption     ≤ 50 µA
Maximal continuous charging current   10A
Maximal continuous Discharging current   10A
3 Over charge Protection
Over charge detection voltage for single cell    3.90V ± 0.025V
Over charge detection delay time    500mS  - 1500mS
Over charge release voltage for single cell    3.80V ± 0.05V
4 Over discharge protection
Over discharge detection voltage for single cell    2.00V ± 0.08V
Over discharge detection delay time    500mS - 1500mS
Over discharge release voltage for single cell    2.5 ± 0.10V
5 Over current protection
Over current detection voltage     150 ± 25mv
Over current detection current     40 ± 5A
Detection delay time    50ms - 200ms
Release condition Cut load
6 Short protection
Detection condition Exterior short circuit
Detection delay time     200 - 500us
Release condition Cut load
7 Resistance Protection circuitry(MOSFET)    ≤ 50mΩ
8 Temperature
Operating Temperature Range      -20 ~+60°C
Storage Temperature Range      -20 ~ +65°C
