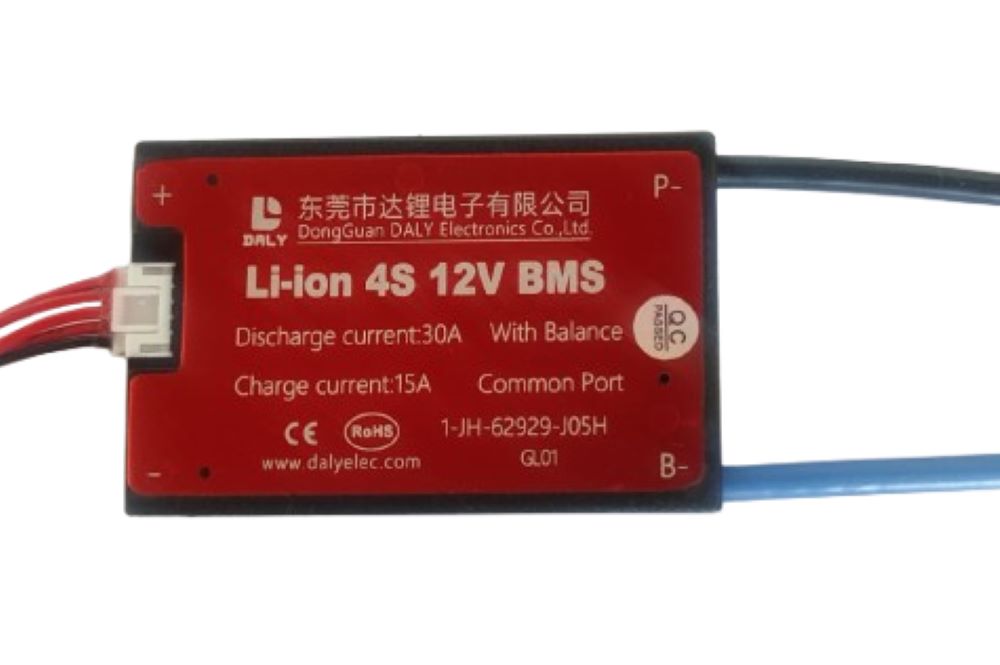

4S30A 12V lithium-Ion Battery Management System (BMS)

4S30A 12V Lithium Ion Battery Management System (BMS)

₹822.03

Product description

4S30A 12V Lithium ion  Battery Management system (BMS) is designed specifically for lithium ion  pack of nominal 14.8V 4 series cells of 3.7v.  It can measure, process and use the real time data of the battery to ensure the safety, stability and long life of the battery pack

4S30A 12V LFP BMS has following salient features

  • The protection of batteries from over-charge, over-discharge, over-current, short-circuit
  • Short term waterproof to protect battery pack from extreme weather and tough dynamic conditions.
  • Common Port design – 2 wires only, Charge and discharge port share the same port.
  • BMS comes with balancing connection wire connector to reduce the wire complexity and number of solders.
  • Dust proof, shockproof and anti-squeezing, protects circuit from external damages.
  • BMS has passive balancing function which gives long life to the batteries.
  • The appearance is sealed by injection moulding process to improve moisture-proof and oxidation-proof circuit components and prolong the service life of the products and batteries.

The BMS 4S 30A comes with equalization function which facilitate to keep the cells at same level and ensure prolong life. The components used in the BMS is

1) Highly integrated IC,

2) low resistance MOS, and

3) high current equalizer.

Battery Management System for 12V 4S30A battery pack configuration of Lithium Ion cells.

Over Charge Protection: Yes

Over Discharge Voltage: Yes

Short Circuit Protection: Yes

Cell balancing Yes

Over Current Protection Yes

SKU: 2021504030 Categories: ,

Description

Specification:-
Discharge
Continuous Discharging Current                                30A
Over discharge Current Detect Voltage                     100±20A
Charge
Charging Voltage                                                           16.8V
Charging Current                                                           15A
Over charge protection
Over Charge Protection Voltage                                 4.25±0.05V
Release delay of Single Over Charge Protection      1S
Over Charge Release Voltage                                      4.15±0.05V
Cell balancing
Cell balancing Detection Voltage                                4.18V
Cell balancing Current                                                  30±5mA
Over discharge protection
Over Discharge Detect Voltage                                   2.7±0.05V
Over discharge Detect Delay Time                             1S
Over Discharge Release Voltage                                3.0±0.05V
Charge/Discharge Overflow protection
Discharge Current Level 2 Protection Current         100±20A
Discharge Current Level 2 Protection delay             1S
Over Current Protection Condition                            Disconnect the load
Short Circuit Protection
Protection Condition                                                    Short circuit of External Load
Detection Delay Time                                                   250 uS
Protection Release Condition                                     Disconnect the load
Temperature Range                                                   -20ºC ~ 60ºC
Internal Resistance                                                    ≤20mΩ
BMS Size                                           80X61X113mm (LXWXH)

Additional information

Weight 0.2 kg
