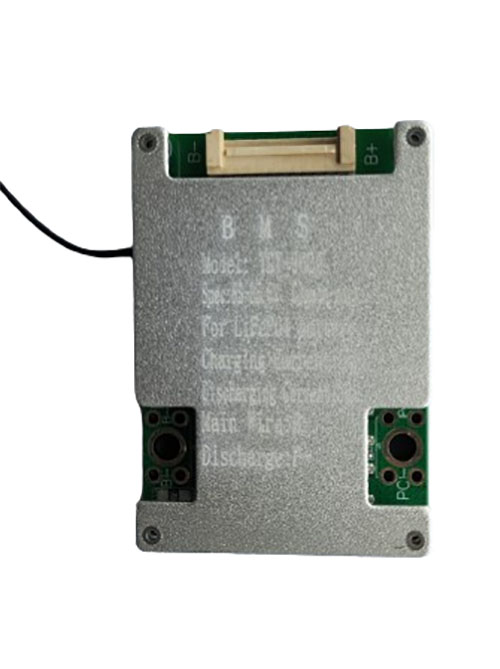

8S20A 24V Battery Management System (BMS) for Lithium Iron Phosphate Battery
₹516.95
Battery management system (BMS) 8S20A is used for LFP 24V battery packs. It can be also used with 32700 Lithium Iron Phosphate cells of different size and shape.
The 8S20A LFP or LiFePO4 BMS has protection for the battery over charge and over discharge, over current, short circuit, over-temperature. Refer product specification for more details.
The BMS 8S 20A comes with equalization function which facilitate to keep the cells at same level and ensure prolong life. The components used in the BMS is
1) Highly integrated IC,
2) low resistance MOS, and
3) high current equalizer.
One pack of BMS contains following items
1) Open BMS circuit board,
2) Wire with snap in connector for connection between cells and BMS.
Description
1 Current Maximal continuous charging current 20A Maximal continuous Discharging current 20A 2 Over charge Protection Over charge detection voltage for single cell 3.65V ± 0.025V Over charge detection delay time 0.8S - 1.2S Over charge release voltage for single cell 3.55V ± 0.025V 3 Over discharge protection Over discharge protection voltage for single cell 2.3V ± 0.03V Over discharge detection delay time 0.8S - 1.2S Over discharge release voltage for single cell 2.70V ± 0.03V 4 Over current protection Discharge Discharge Over current 80 ~ 120A Detection delay time 0.7 ~1.3S Charge Charge Overcurrent Protection 30 ~ 50A Detection delay time 0.8 ~1.2S 5 Short protection Detection delay time 160~ 240us Release condition Cut off load 6 Input Voltage Input voltage DC: 29.05V 7 Balance current – 28 – 60mA 8 Current consumption by protection circuit Max 65 µA 9 IR Resistance of PCM ≤ 25mΩ 10 Temperature Discharge Temperature Protection 70°C±5°C 11 Dimension L75*W52*T9mm
Additional information
| Weight | 0.2 kg |
|---|
