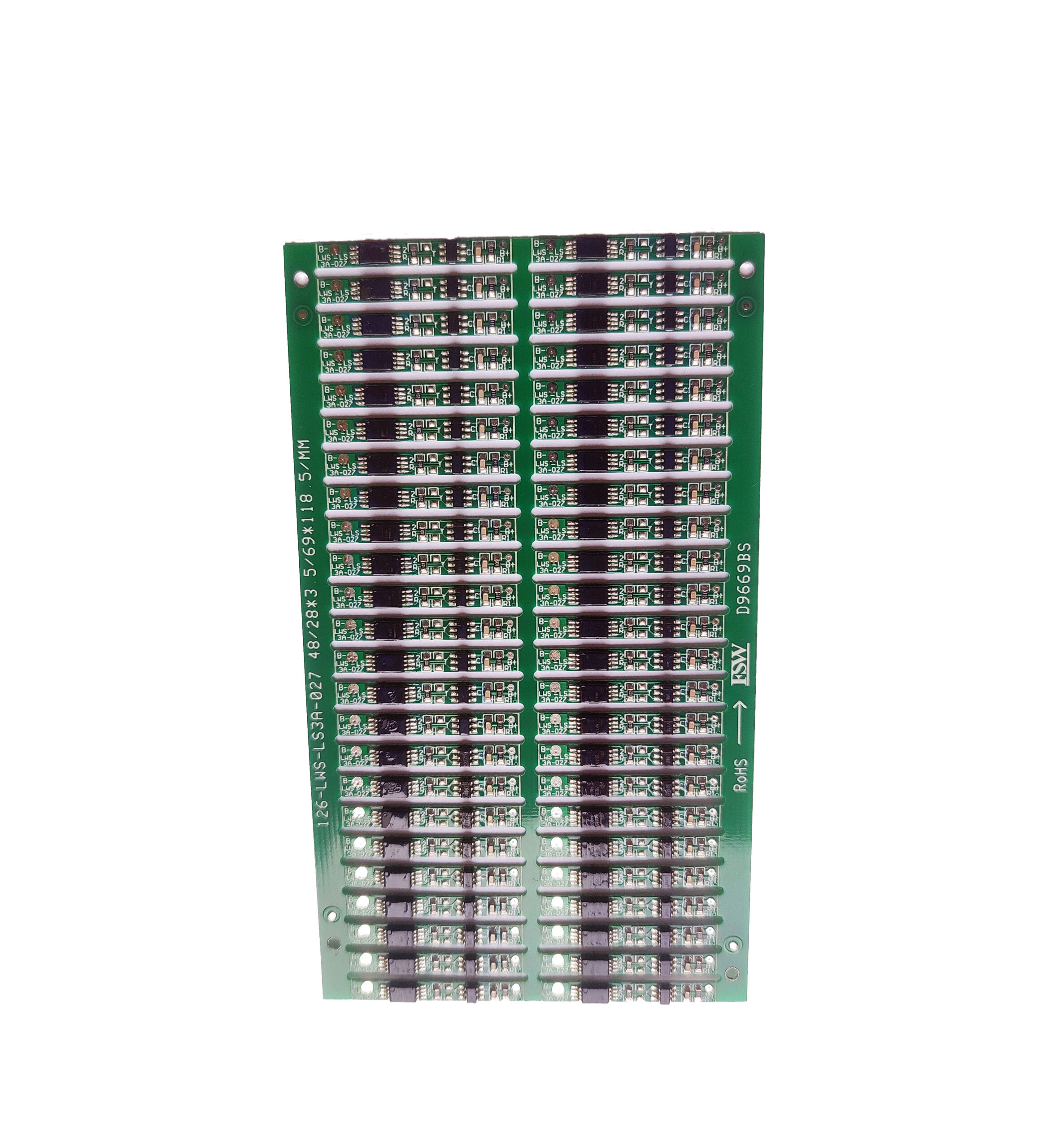

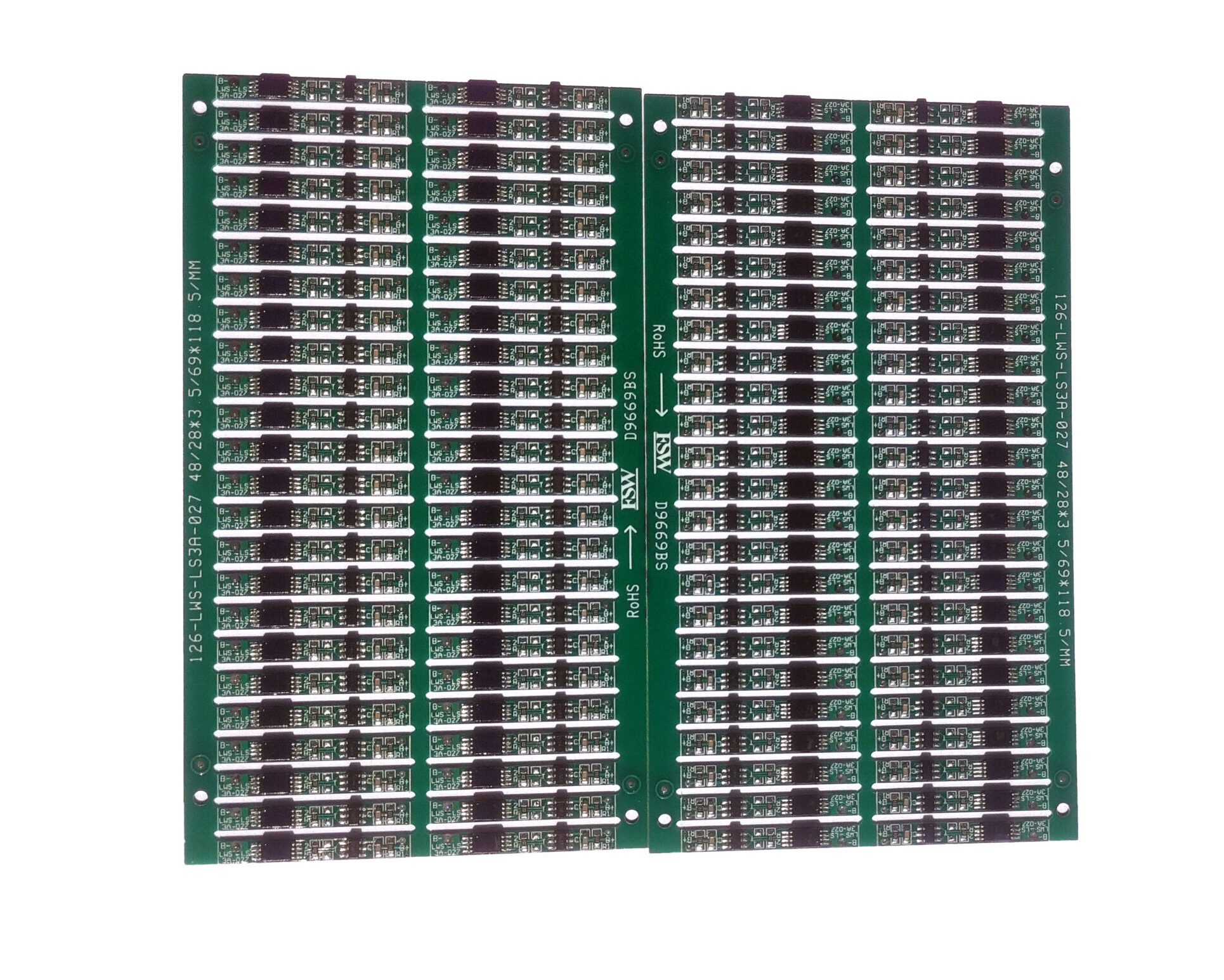

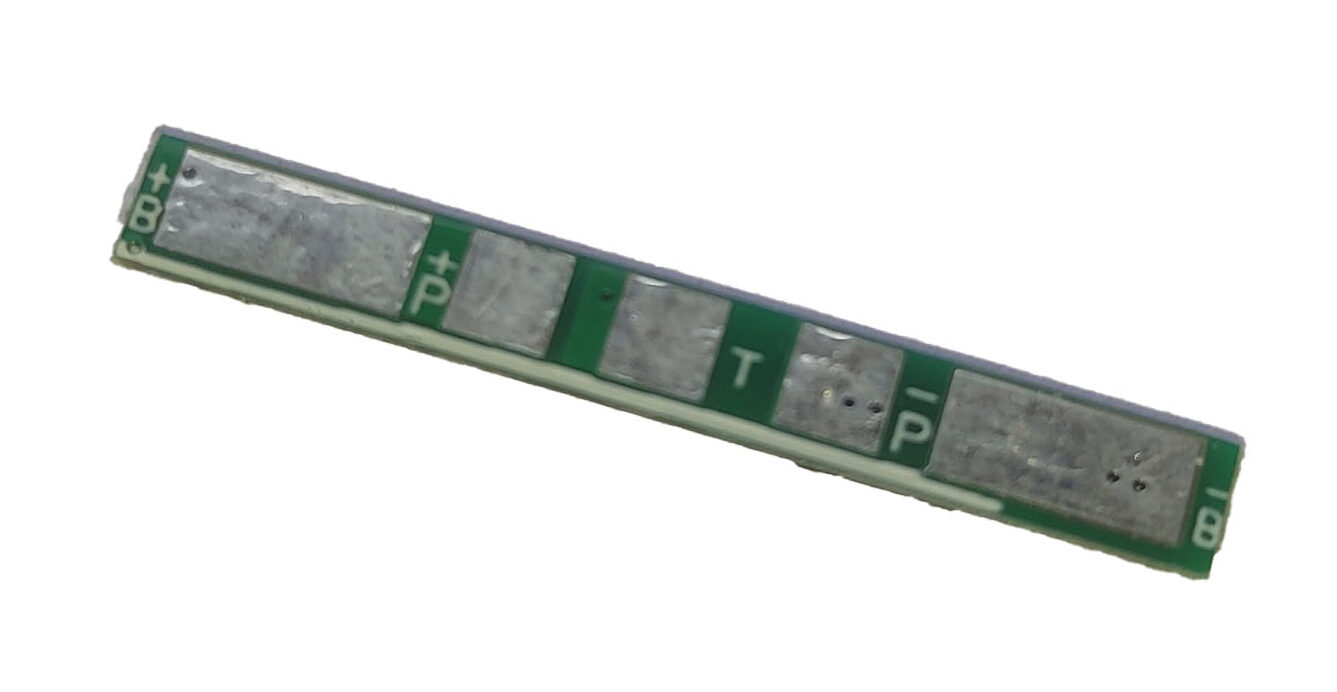

1S3A Lithium Ion BMS

1 Voltage
Charging voltage DC:  4.2V
Balance voltage for single cell
2 Current
Balance current for single cell
Current consumption  ≤ 10µA
Maximal continuous charging current   3A
Maximal continuous discharging current   3A
3 Over charge Protection
Over charge detection voltage for single cell   4.25 ± 0.025V
Over charge detection delay time  0.5S – 1.5S
Over charge release voltage for single cell   4.05 ± 0.05V
4 Over discharge protection
Over discharge detection voltage for single cell   3.0 ± 0.08V
Over discharge detection delay time 10ms – 100mS
Over discharge release voltage for single cell 3.2 ± 0.1V
5 Over current protection
Over current detection voltage   0.15 ± 0.015V
Over current detection current  5 ± 1A
Detection delay time   5ms – 11ms
Release condition cut load
6 Short protection
Detection condition Exterior short circuit
Detection delay time   200 – 500us
Release condition cut load
7 Resistance Protection circuitry(MOSFET)  ≤ 10mΩ
8 Temperature
Operating Temperature Range   -20 ~ +60°C
Storage Temperature Range   -20 ~+65°C
