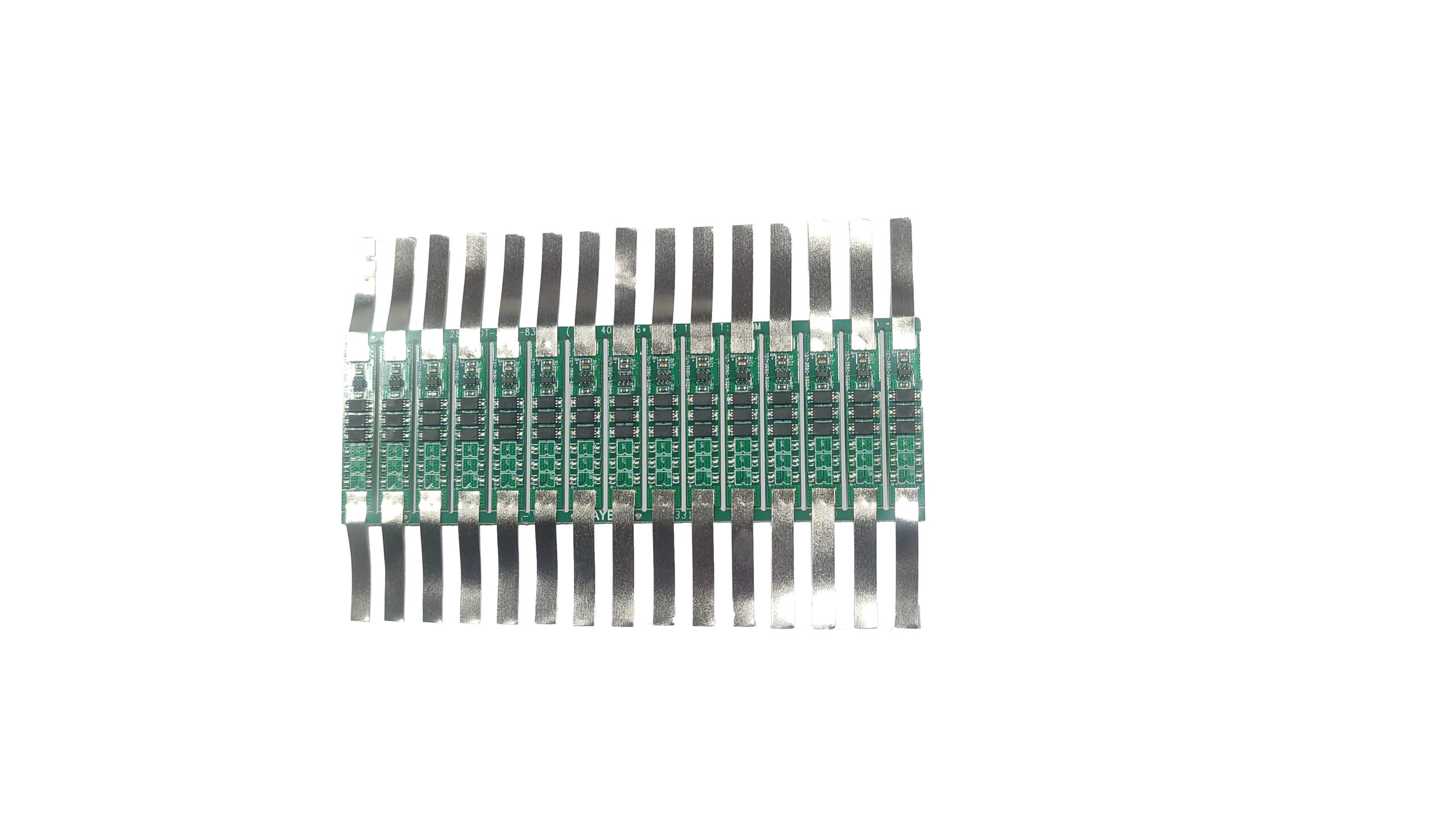

TDT 1S5A Li-ion BMS with Nickel Strip (Pack of 5 Nos.)
₹152.54
Lithium Battery management system (BMS) or protection control module PCM for 1S5A lithium-ion 3.7v battery. It can be used with 18650 cell, 21700 cell and Lithium polymer of different size.
The 1S5A Li-ion BMS has following protections
- Over charge protection
- Over discharge protection,
- Over current protection,
- Short circuit.
Refer PCM 1S5A product specifications for more details.
The BMS 1S 5A is must to protect the Lithium cells from extreme load conditions and ensure prolong life. The components used in the BMS are
1) Highly integrated IC,
2) Low resistance MOS.
3) Additoinal Nickel Strip for ease of assembly with cells
Description
1 Voltage Input voltage DC: -0.3~+10V 2 Current Current consumption Max 8.00µA Maximal continuous charging current 5A Maximal continuous Discharging current 5A 3 Over charge Protection Over charge detection voltage for single cell 4.28V ± 0.05V Over charge detection delay time 0.12S - 0.16S Over charge release voltage for single cell 4.08V ± 0.1V 4 Over discharge protection Over discharge detection voltage for single cell 2.4V ± 0.1V Over discharge detection delay time 60mS - 80mS Over discharge release voltage for single cell 3.00V ± 0.1V 5 Over current protection Over discharge current 10 ~ 15A Detection delay time 10ms ~ 20ms 6 Short protection Detection delay time 50~ 100us Release condition Cut load 7 IR Resistance of PCM ≤ 30mΩ 8 Temperature Operating Temperature Range -20 ~+60°C 9 Dimension L35*W8*T2.2mm Max
Additional information
| Weight | 0.1 kg |
|---|
